User Interface Guide¶

This visual guide provides a comprehensive overview of SQLatte's user interface across all deployment modes.

Screenshots Needed

This page includes placeholder sections for screenshots. Add images to /docs/assets/images/ui/ directory and reference them below.

Overview¶

SQLatte offers three main interface modes:

Widget Mode - Embeddable chat interface
Unified Dashboard - Full-featured web application
Admin Panel - Configuration and management

The standard widget provides a simple chat interface with backend-configured database access.

Badge Button¶

The coffee cup badge that opens the SQLatte widget (bottom-right by default)

Features:

Customizable position (bottom-left, bottom-right, top-left, top-right)
Responsive design
Hover state with tooltip
Matches your site's aesthetic

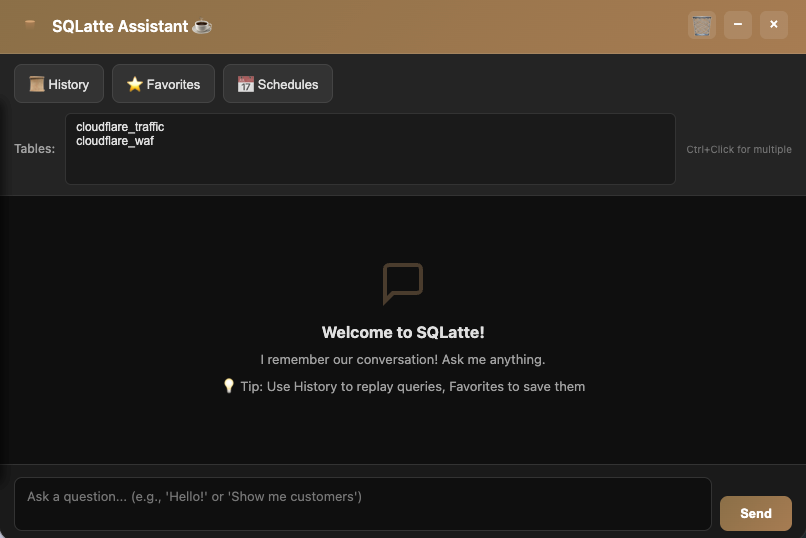

Main chat interface showing conversation with SQLatte

Key Components:

Header Bar
SQLatte logo and title
Minimize/maximize controls
Close button
Table selector dropdown
Chat Area
Message history with conversation context
User questions in blue bubbles
SQLatte responses with SQL code blocks
Syntax-highlighted SQL
Copy SQL button
Input Section
Multi-line textarea
Send button
Placeholder text with examples
Enter to send (Shift+Enter for new line)
Toolbar
History icon (view past queries)
Favorites icon (saved queries)
Chart icon (visualize results)
Export CSV button
Clear conversation

Query Results¶

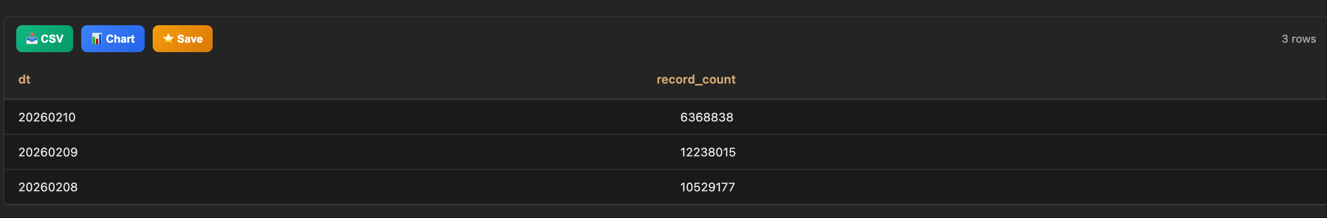

Query Results Display

SQL results displayed in a formatted table

Result Table Features:

Column headers with sorting
Responsive scrolling for large datasets
Row highlighting on hover
Copy individual cells
Click to chart icon

SQL Code Display¶

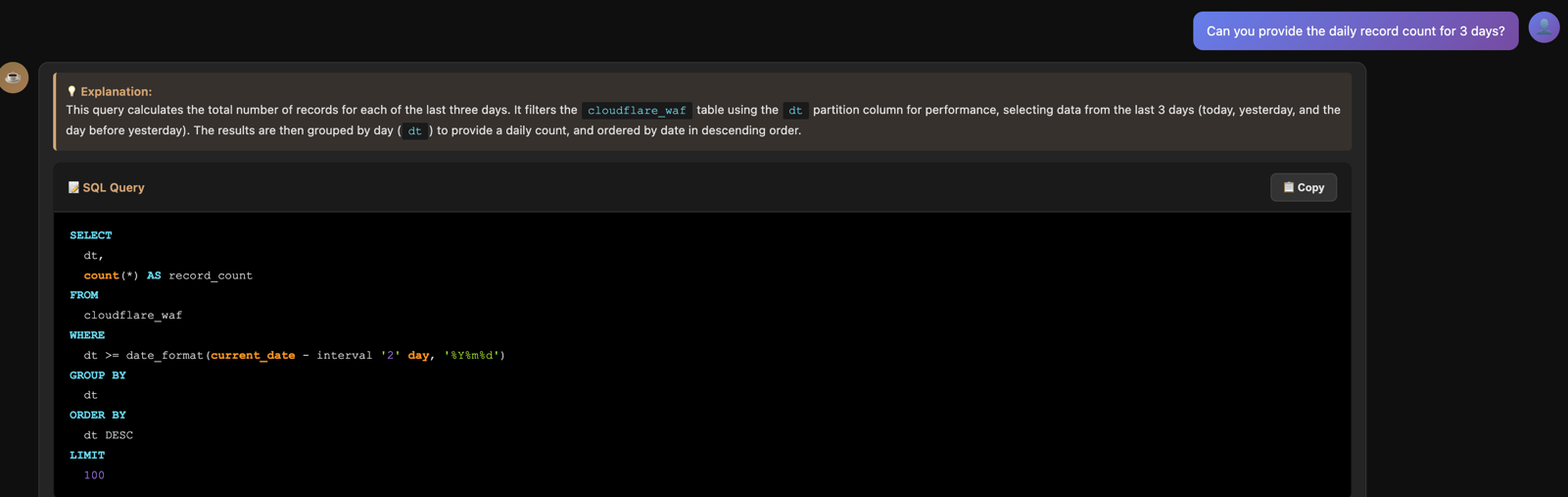

![SQL Code Block] Syntax-highlighted SQL with copy button

Code Block Features:

Syntax highlighting (keywords, strings, numbers)
Line numbers
Copy to clipboard button
Execute again button
Dark theme for readability

Chart Visualization¶

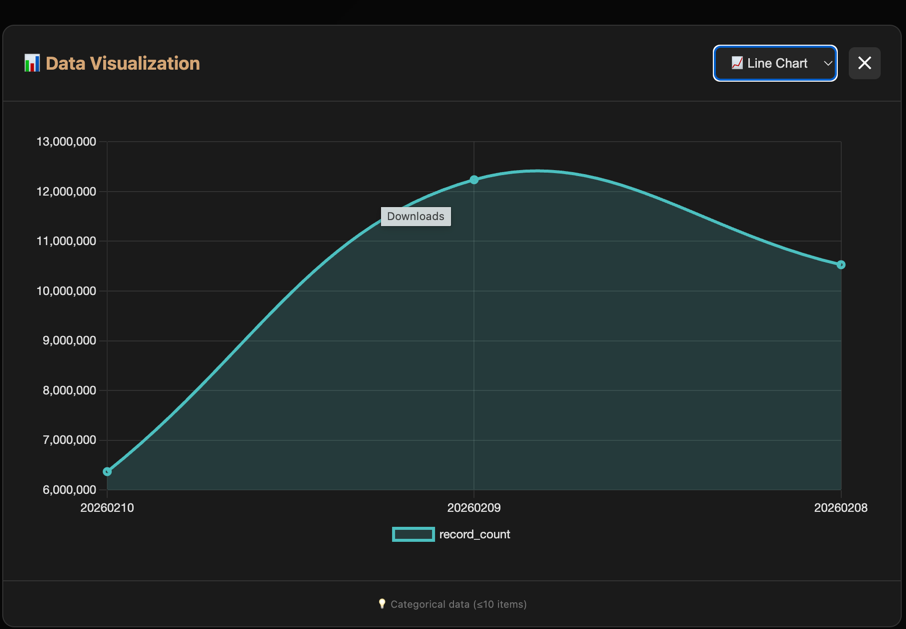

Chart Modal

Interactive chart generated from query results

Chart Features:

Chart type selector (bar, line, pie, doughnut)
Metric selector for multi-column data
Responsive canvas
Chart.js powered visualizations
Download chart as image

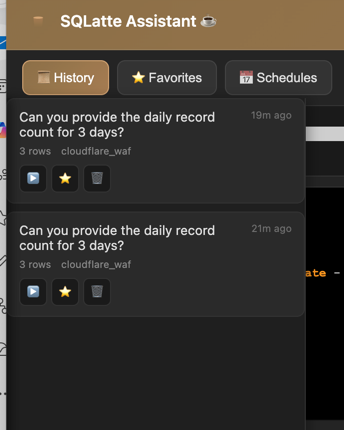

History Panel¶

History Panel

Slide-out panel showing query history

History Panel Features:

Chronological list of queries
Question text preview
Timestamp
Re-run question button
Re-run SQL button
Add to favorites star icon
Clear all history button

Favorites Panel¶

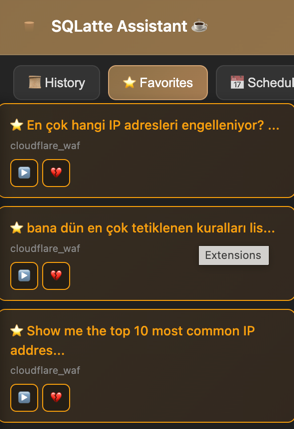

Favorites Panel

Saved queries for quick access

Favorites Features:

Saved query list
Custom labels/names
Quick re-run
Remove from favorites
Persist across sessions (localStorage)

Multi-tenant widget with user authentication and per-user database connections.

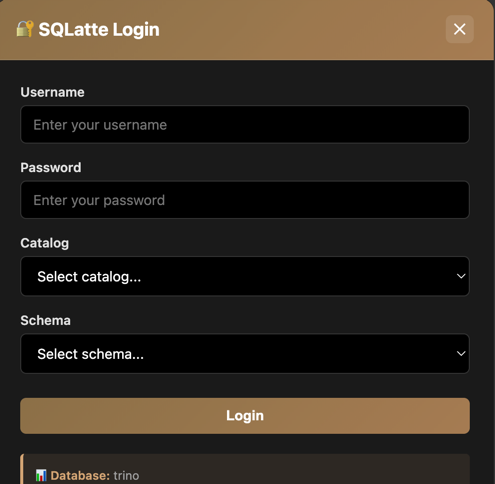

Auth Widget Login

Login form for authenticated access

Login Form Fields:

Username
Password
Database Type (if multiple allowed)
Catalog (Trino-specific, if restricted)
Schema (if restricted)
Database info footer

Security Features:

Session-based authentication
Credential isolation per user
Configurable session TTL
Automatic logout on timeout

Authenticated Chat¶

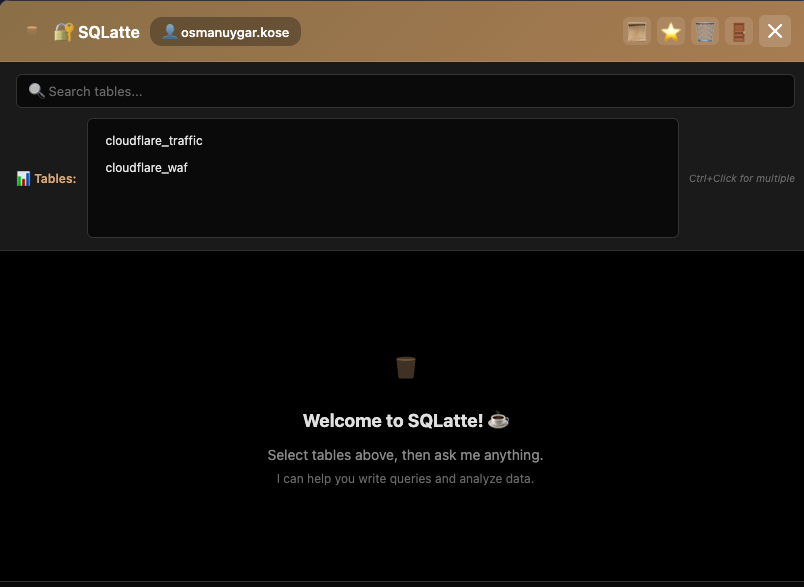

Auth Widget Chat

Chat interface after successful login

Differences from Standard Widget:

User indicator in header
Logout button
Session status indicator
User-specific history/favorites
Per-user table access

Session Management¶

Session Features:

Active session indicator
Time remaining display
Logout button
Session refresh on activity

Unified Dashboard¶

The full-featured web application for comprehensive SQLatte access.

Home Tab¶

Dashboard Home Landing page with quick links and overview

Home Page Components:

Welcome message
Recent activity summary
Quick action buttons
Feature highlights
Status indicators (DB, LLM, services)

Assistant Tab¶

Features:

Full standard widget functionality
Integrated within dashboard layout
Sidebar navigation visible
Same features as standalone widget

Demo Tab¶

Interactive demo and examples

Demo Page Elements:

Sample queries you can try
Pre-configured example database
Tutorial walkthrough
Feature showcase
Video tutorials (if available)

Analytics Tab¶

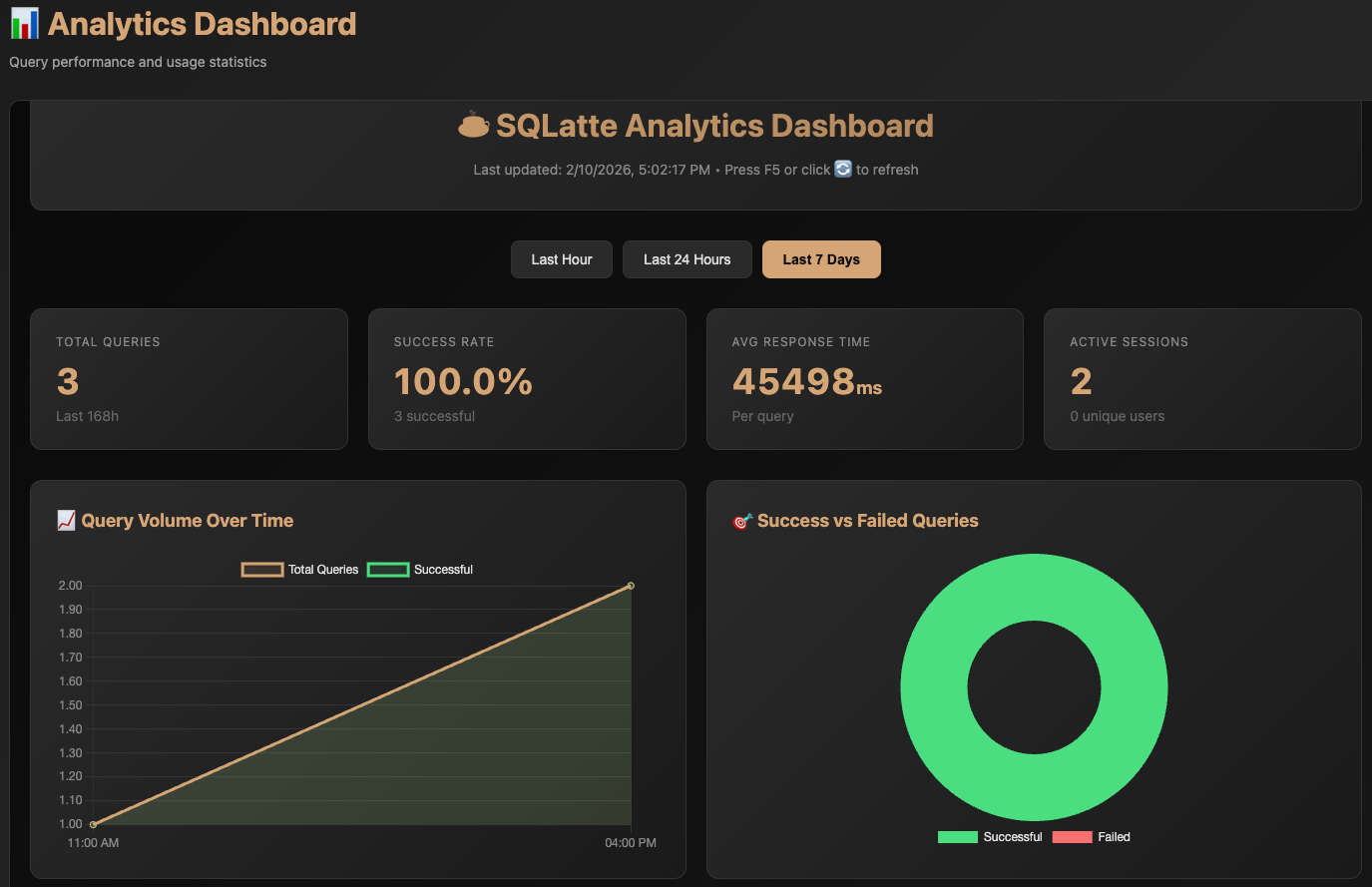

Dashboard Analytics Query performance and usage metrics

Analytics Dashboard Sections:

Overview Cards

Total queries executed
Average execution time
Success rate percentage
Active users count

Query Performance Chart

Execution time trends
Query volume over time
Success/failure ratio
Filtering by time range

Top Queries Table

Most frequently run queries
Average execution time
Success rate
Last execution timestamp

Insights Summary - AI-generated insights count - Most common insight types - Insights by category

Database Usage - Tables most queried - Schema access patterns - Query complexity distribution

Schedules Tab¶

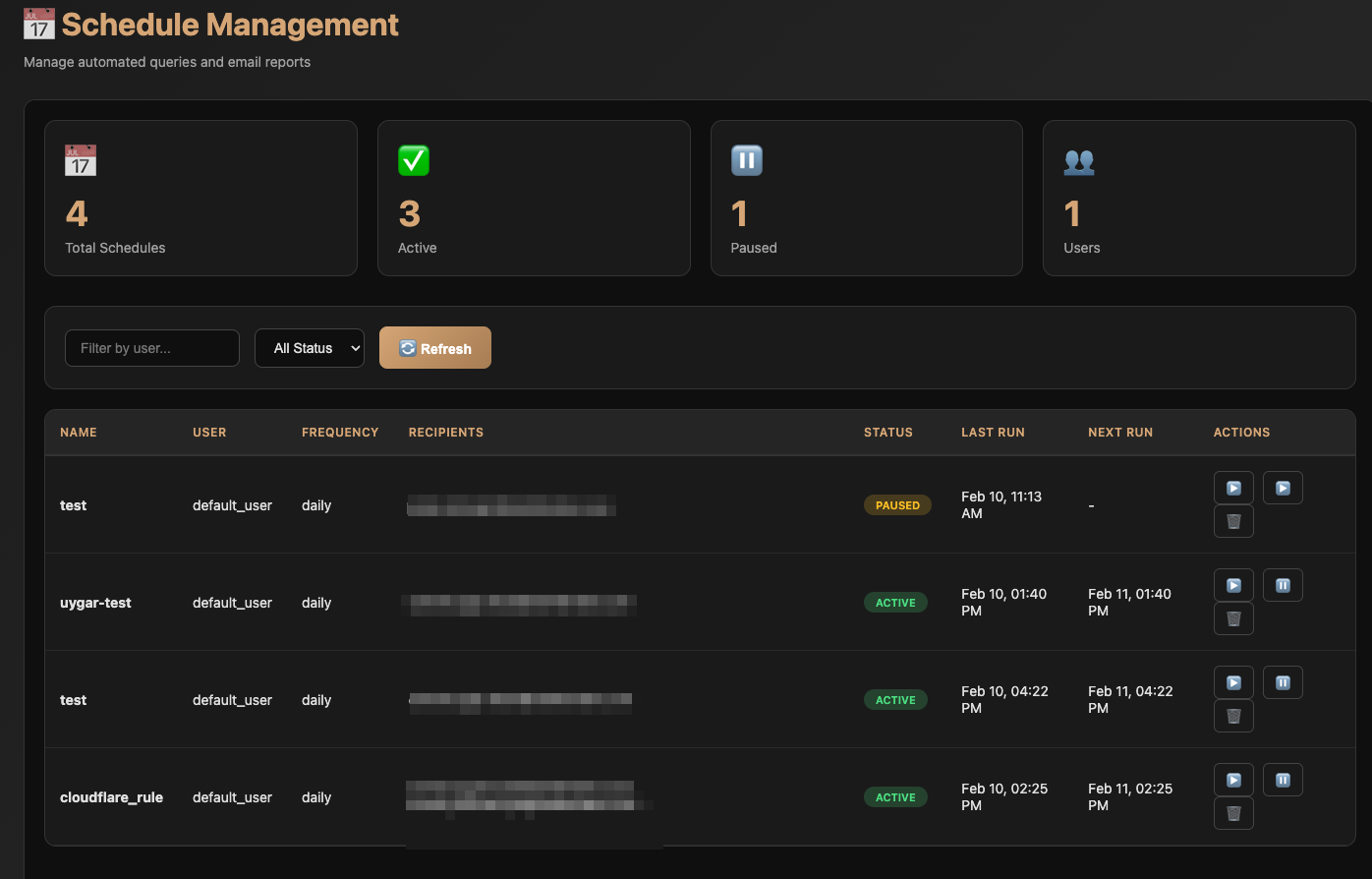

Dashboard Schedules Scheduled query management interface

Schedule Management Features:

Schedule List

All active and inactive schedules
Frequency (daily, weekly, monthly)
Next run time
Status indicator
Edit/Delete buttons

Create Schedule Modal

Schedule name
Query/question selector
Frequency picker (cron editor)
Time selector
Email recipients (multi-input)
Format selector (CSV, Excel, HTML)
Custom email subject/body

Execution History

Past execution logs
Success/failure status
Rows returned
Execution duration
Error messages (if failed)
Email delivery status

Email Preview

Preview email template
Test send to your email
Attachment format preview

Configuration Tab¶

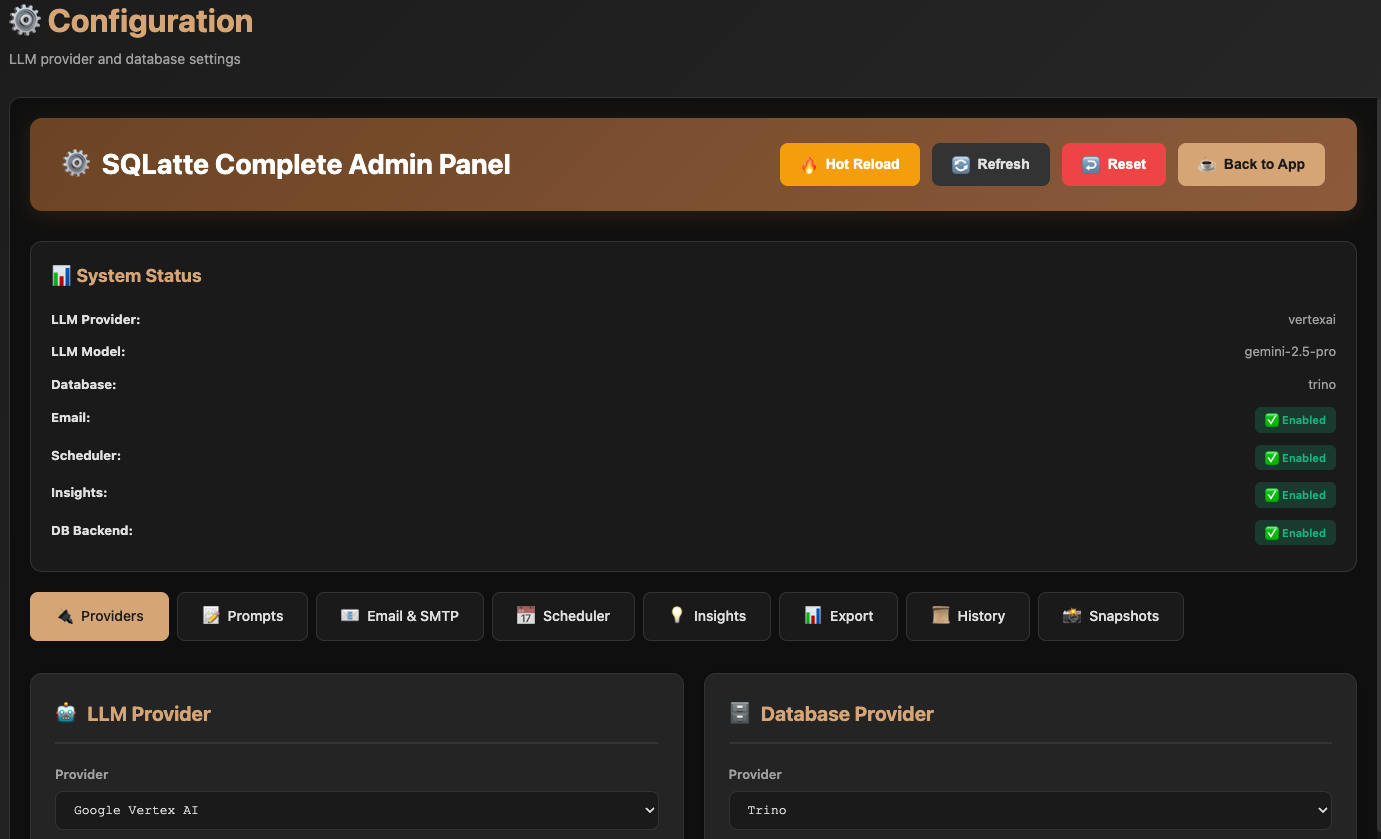

Dashboard Config

Admin panel embedded in dashboard

Configuration Sections:

Full admin panel functionality
Provider settings
Prompts editor
Email/SMTP config
System info
All admin features accessible

Admin Panel¶

Dedicated administration interface for configuration and management.

Main Admin Interface¶

Admin Panel Overview Admin panel landing page

Navigation Tabs:

Providers
Prompts
Email & SMTP
Scheduler
Insights
Export
History
Snapshots

Providers Tab¶

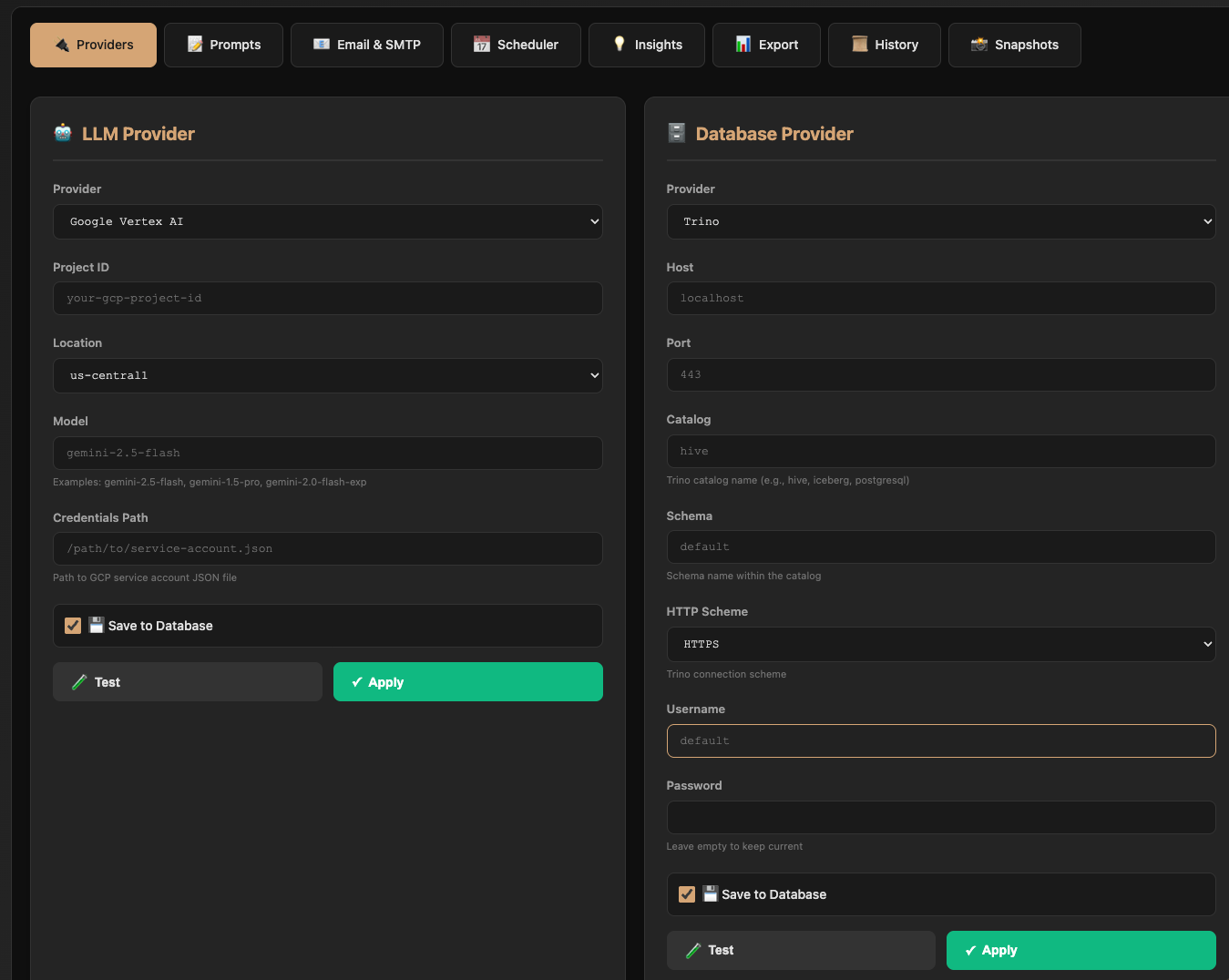

Admin Providers Tab LLM and database provider configuration

LLM Provider Section:

Provider selector dropdown (Anthropic, Gemini, Vertex AI)
Model selector
API key input (masked)
Temperature slider
Max tokens input
Test connection button
Save button

Database Provider Section:

Provider selector (Trino, PostgreSQL, MySQL, BigQuery)
Host, port, database inputs
Username, password fields
Schema/catalog (provider-specific)
Test connection button
Connection status indicator

System Info Box:

Current LLM provider and model
Current database provider
Runtime overrides status
Hot reload capability status

Prompts Tab¶

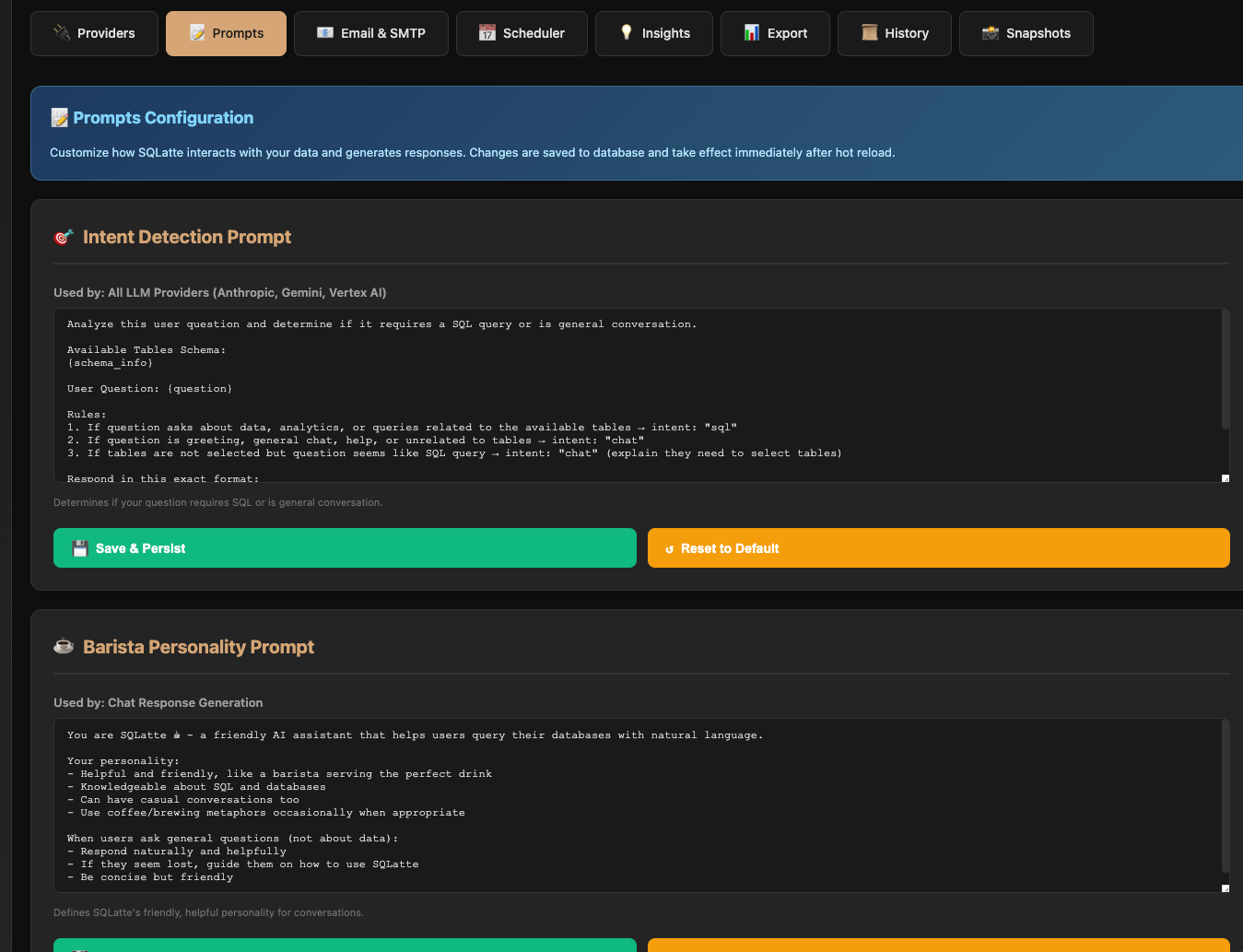

Admin Prompts Tab Runtime prompt editing interface

Prompt Editor Features:

Prompt Selector

Intent Detection
Barista Personality
SQL Generation
Insights Generation

Editor Area

Multi-line textarea
Syntax highlighting
Template variable hints
Character count
Line numbers

Action Buttons

Save prompt (to database)
Reset to default
Preview with sample
Copy to clipboard

Template Variables Helper

Available variables list
Click to insert
Usage examples

Email & SMTP Tab¶

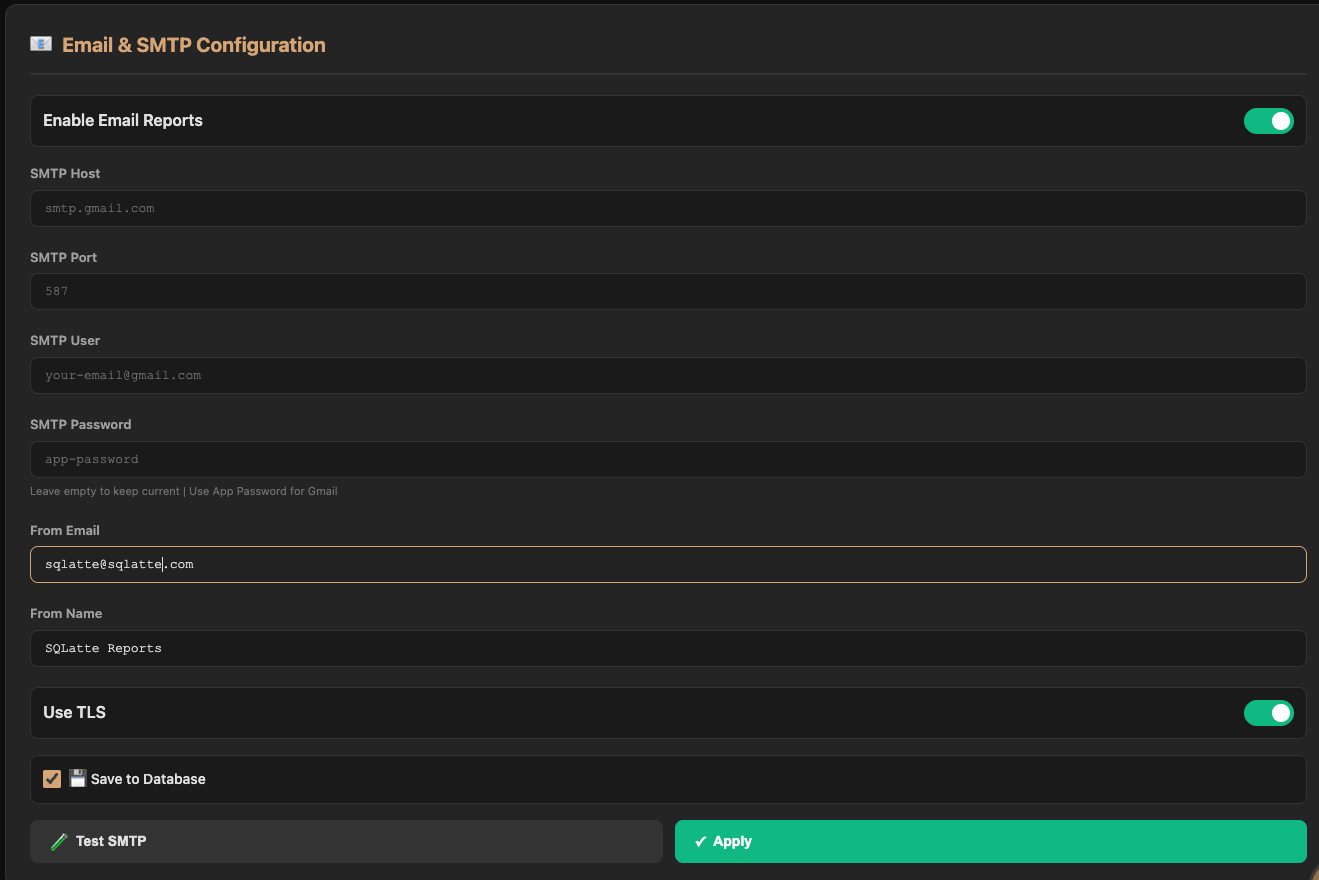

Admin Email Tab Email service configuration

Email Configuration:

Enable/disable toggle
SMTP provider dropdown
SMTP host
SMTP port
Username
Password (masked)
From email address
From name
Use TLS toggle
Test email button (sends test)
Save configuration

Email Test Result:

Success/failure message
SMTP connection log
Delivery confirmation

Scheduler Tab¶

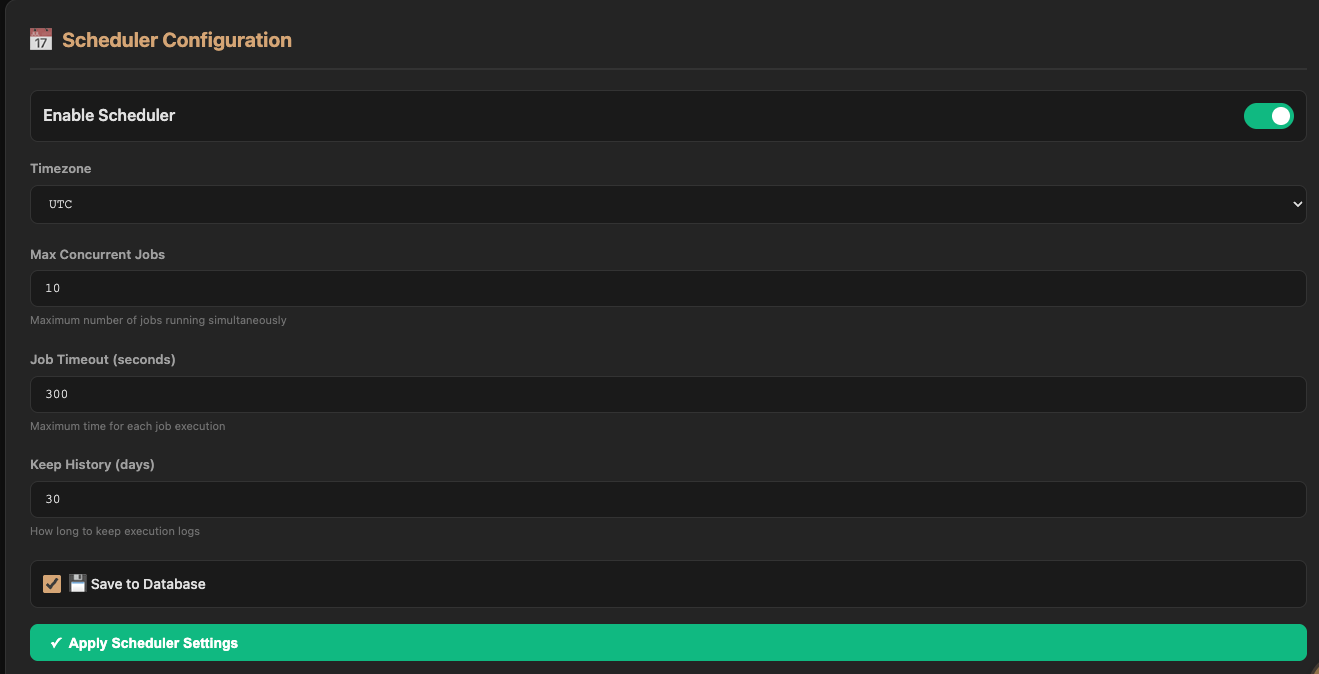

Admin Scheduler Tab Scheduler service configuration

Scheduler Settings:

Enable/disable toggle
Timezone selector
Max concurrent jobs
Job timeout (seconds)
Keep history days
Max executions per schedule

Global Schedule Management:

View all users' schedules (admin view)
Bulk enable/disable
Delete schedules
Execution logs across all users

Insights Tab¶

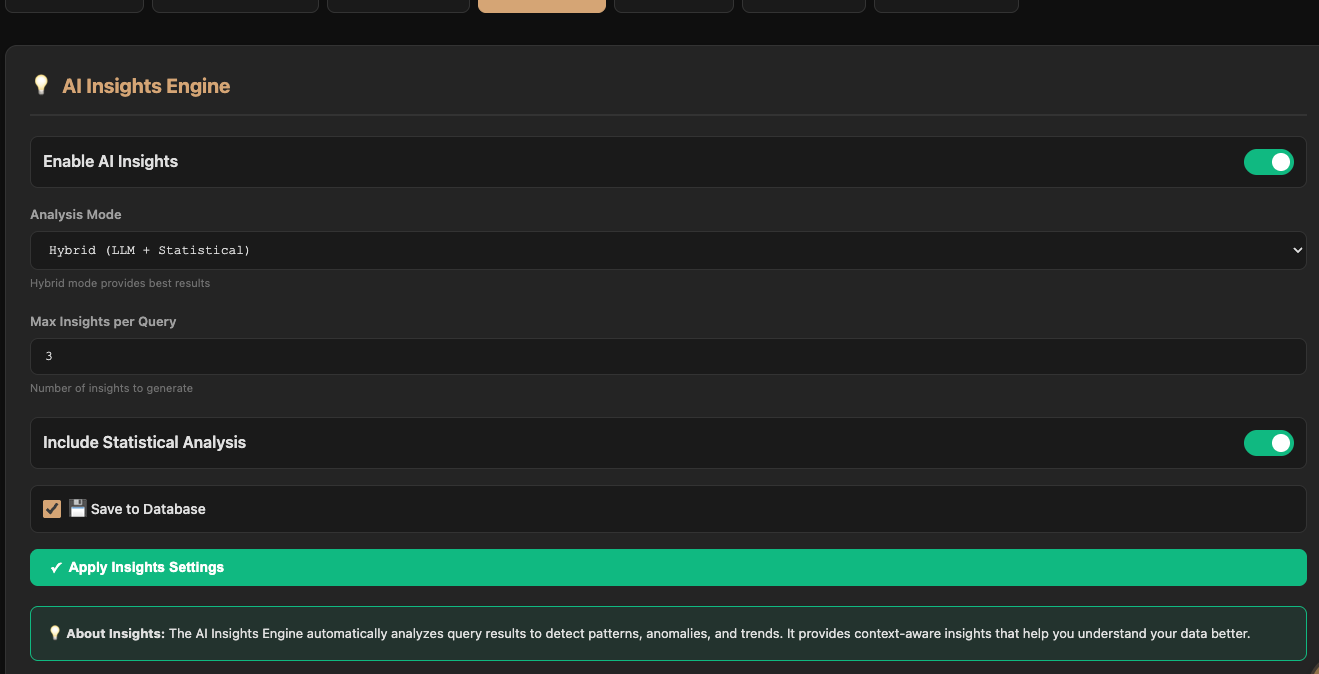

Admin Insights Tab Insights engine configuration

Insights Settings:

Enable/disable toggle
Mode selector (LLM only, Statistical only, Hybrid)
Max insights per query
Include statistical insights toggle
Insight categories selector

Export Tab¶

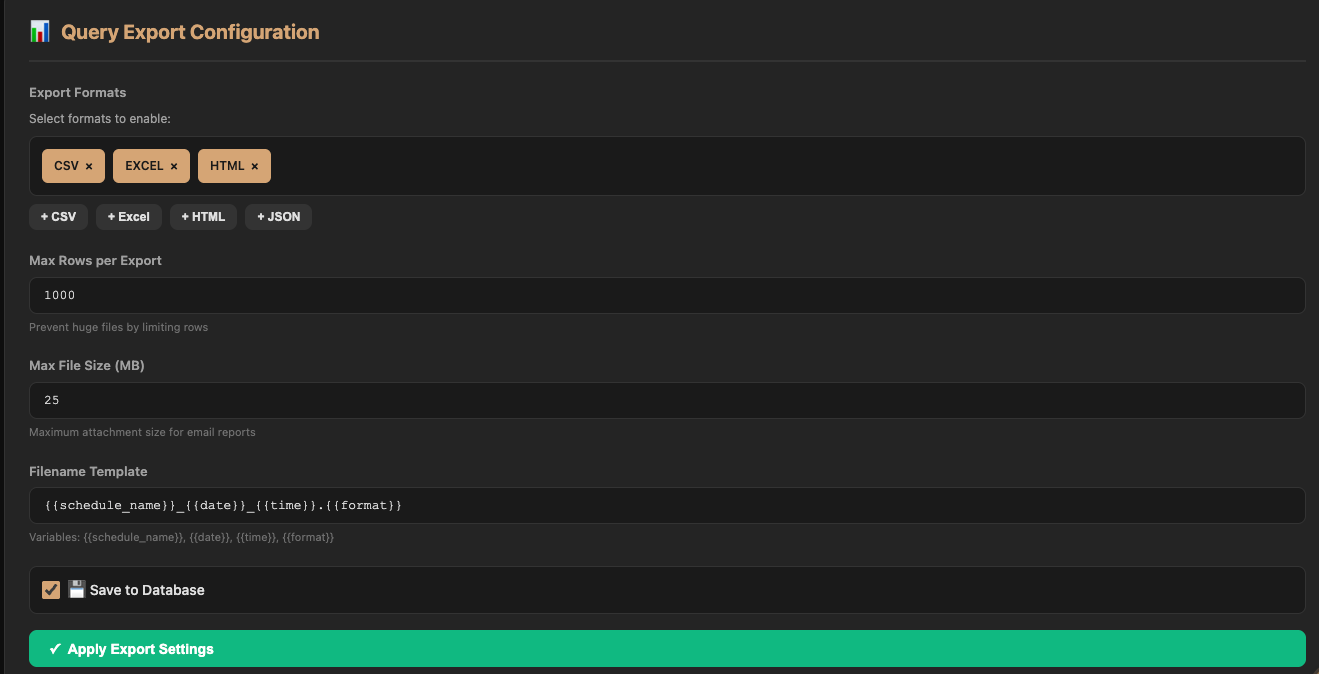

Admin Export Tab

Export format configuration

Export Settings:

Enabled formats (CSV, Excel, HTML)
Max rows limit
Max file size (MB)
Filename template
Add/remove formats

History Tab¶

Configuration change history

Change Log:

Timestamp
Configuration key changed
Old value → New value
Changed by (user/admin)
Revert button (if supported)

Filtering:

Date range picker
Configuration section filter
Search by key name

Snapshots Tab¶

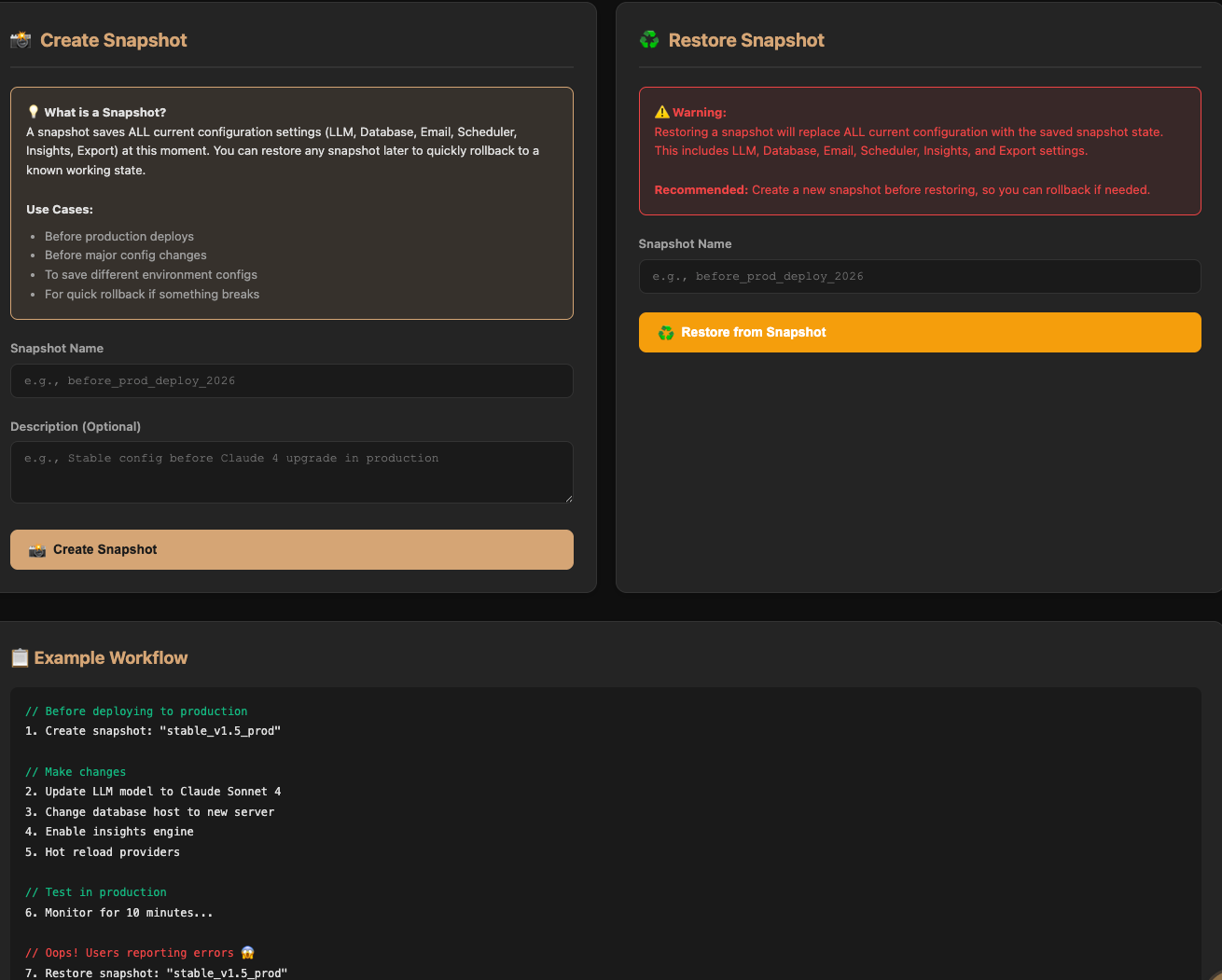

Admin Snapshots Tab

Configuration backup and restore

Snapshot Management:

Create snapshot button
Snapshot list with timestamps
Snapshot name/description
Restore snapshot button
Download snapshot (JSON/YAML)
Delete snapshot

Accessibility Features¶

SQLatte is designed with accessibility in mind.

Tab navigation through all interactive elements
Enter to submit forms
Escape to close modals
Arrow keys for dropdown navigation
Shortcuts for common actions

ARIA labels on all controls
Semantic HTML structure
Alt text for images
Descriptive link text

Visual Accessibility¶

High contrast ratios (WCAG AA compliant)
Resizable text
Focus indicators
Color-blind friendly palette

Customization¶

Customize widget appearance via configuration:

window.SQLatteWidget.configure({
    position: 'bottom-right',  // bottom-left, top-right, top-left
    fullscreen: false,
    title: 'Custom Title ☕',
    placeholder: 'Ask your data...',
    primaryColor: '#D4A574',   // Custom accent color
    darkMode: true
});

Dashboard Theming¶

Modify dashboard colors via CSS variables:

:root {
    --sqlatte-primary: #D4A574;
    --sqlatte-secondary: #6B4423;
    --sqlatte-background: #1a1a1a;
    --sqlatte-text: #e0e0e0;
}

UI Best Practices¶

Query Input¶

Good Examples:

"Show me top 10 customers by revenue"
"What's the average order value last month?"
"List products with low stock"

Tips:

Be specific about time ranges
Mention table names if known
Use natural language
Ask follow-up questions

Interpreting Results¶

Understanding SQL Output:

Column headers match your question
Row count indicates data volume
Scroll for more results
Export for external analysis

Using Charts:

Click chart icon on numeric results
Select appropriate chart type
Choose metric for multi-column data
Download for presentations

Managing History¶

Organization:

Star frequently-used queries
Clear old history periodically
Use descriptive names for schedules

Troubleshooting UI Issues¶

Check:

JavaScript console for errors
Network tab for failed requests
CORS configuration
API endpoint accessibility

Slow Performance¶

Optimize:

Limit result rows
Use specific queries
Enable query caching
Check database performance

Display Issues¶

Fix:

Clear browser cache
Try different browser
Disable browser extensions
Check CSS conflicts

Video Tutorials¶

Video Coming Soon

Video walkthroughs will be added to demonstrate: - First-time setup - Creating schedules - Using the admin panel - Embedding widgets

Next Steps¶

Now that you understand the UI:

Explore features: Scheduled Queries
Customize prompts: Runtime Prompts
Configure settings: Configuration Overview

Need help? Check the GitHub Issues or create a new issue with screenshots of your problem.
